Solve your material selection dilemmas! Handrail experts decode the selection logic to help you control costs, avoid pitfalls, and build high-quality projects that stand the test of time.
"We chose 201 for budget reasons, but why are there rust spots before delivery?"
"We used 304 stainless steel handrails, but why do ours rust in two years while others last a decade in coastal areas?"
"The client insists on 316, but it blows the budget. Is there a more cost-effective solution?"
These common frustrations are at the core of handrail material selection pain points. Choosing the wrong grade of stainless steel leads to:
Soaring After-Sales Costs: Frequent maintenance, replacement, and customer complaints.
Damaged Brand Reputation: Rusty and faded projects directly harm your credibility.
Safety Risks: Structural corrosion can compromise handrail strength.
As a professional supplier of stainless steel handrail tubes and fittings, EGOEE understands that there is no "best" material, only the "most suitable" one. This article will serve as your project consultant, helping you fully understand the differences between 201, 304, and 316, and make the most cost-effective choice for your handrail project.
Stainless steel is a large family, but for the handrail industry, SS201, SS304, and SS316 are the most common grades, representing different cost, corrosion resistance, and application tiers.
SS201 Stainless Steel (The Indoor Economy Choice)
Identity: A Chromium-Manganese-Nickel (Cr-Mn-Ni) austenitic stainless steel, using manganese and nitrogen to partially replace nickel.
Pros: Significant price advantage, lowest initial cost. Offers some rust resistance in dry indoor environments.
Cons: Poor corrosion resistance, highly sensitive to chlorides (e.g., salt, sweat, cleaners), very prone to pitting and rust. Higher manganese content may be a concern for frequently touched surfaces in high-end projects.
Handrail Application: Recommended only for dry indoor environments and non-frequently touched decorative rails. E.g.: Upper-floor indoor railings in large malls, decorative handrails in non-humid hotel areas. Never use outdoors, in coastal areas, bathrooms, or kitchens.
SS304 Stainless Steel (The All-Round Champion)
Identity: The classic Chromium-Nickel (Cr-Ni) austenitic stainless steel, widely known as "food-grade".
Pros: Excellent all-around performance. Great corrosion resistance, formability, and weldability. Surface finishes (e.g., brushed, mirror, bead-blasted) are aesthetically pleasing and durable.
Cons: Higher cost than SS201. Can corrode in damp, chloride-rich environments (e.g., coastal areas, near chemical plants).
Handrail Application: The first choice for the vast majority of projects, offering the best value. Ideal for: Most outdoor railings (non-coastal), public stair handrails, residential balcony railings, hospitals, schools. The best balance of cost and performance.
SS316 Stainless Steel (The Coastal & Corrosion-Resistant Choice)
Identity: The "upgraded" version of SS304, with a key addition: Molybdenum (Mo).
Pros: Superior corrosion resistance, with exceptional resistance to chloride pitting, far exceeding SS304. Performs stably in harsh conditions.
Cons: The most expensive option with the highest initial cost.
Handrail Application: Designed for harsh environments. Use for: All coastal buildings (seaside villas, hotels, piers), pool surrounds, industrial zones, chemical plants, high-end hotel outdoor terraces.

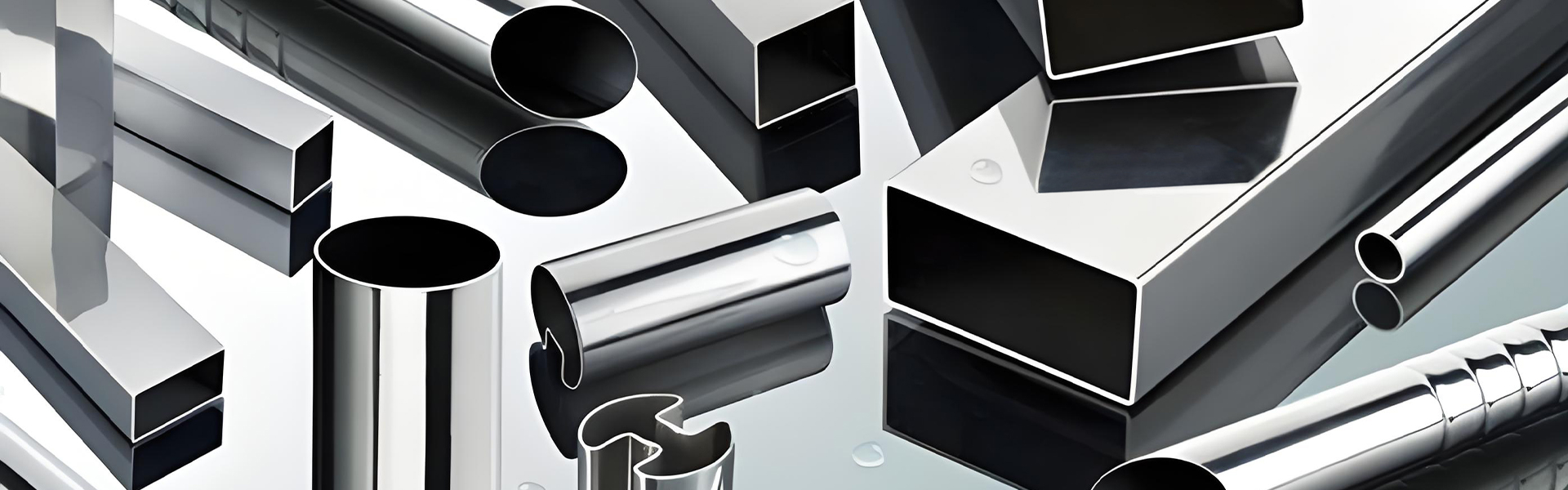

When purchasing stainless steel welded tubing (the most common form for handrails), you will likely encounter the ASTM A554 standard. It is the Standard Specification for Welded Stainless Steel Mechanical Tubing used for structural and aesthetic applications, set by ASTM International.
Why is it important for you?
Quality Assurance: Tubing conforming to ASTM A554 must meet strict requirements for chemical composition, mechanical properties (e.g., tensile strength), dimensional tolerances, weld quality, and hydrostatic testing.
Material Selection Basis: The standard explicitly covers grades like 201, 304, 304L, 316, and 316L. Specifying "ASTM A554 Grade XXX" ensures you receive material that meets an international benchmark, avoiding the risk of substandard material.
Professionalism: Requiring ASTM A554 in your procurement specifications demonstrates professionalism and a commitment to quality, helping to filter qualified suppliers.
Therefore, asking your supplier "Is your 304 tubing compliant with ASTM A554 standard?" is a simple and effective quality control question.
Property | 201 Stainless | 304 Stainless | 316 Stainless |
Key Elements | Cr-Mn-Ni | Cr-Ni | Cr-Ni-Mo |
ASTM A554 Grade | Grade 201 | Grade 304 | Grade 316 |
Corrosion Resistance | Fair (Poor vs Chlorides) | Very Good | Excellent (Resists Chlorides) |
Initial Cost | Lowest | Medium | Highest |
Fabrication & Welding | Good | Excellent | Excellent |
Recommended Environment | Dry Indoor | Most Outdoor & Indoor | Coastal, High-Humidity, High-Corrosion |
Project Positioning | Economy, Temporary | General Purpose, Value | Premium, Longevity |
Now that you know the basics, forget memorization. Just ask yourself these five questions:
Dry Indoor (e.g., mall atrium, office): SUS201 is an option, SUS304 is safer.
Humid Indoor (e.g., bathroom, kitchen, indoor pool): Must use SUS304. SUS201 will corrode quickly.
General Outdoor (urban, non-coastal): SUS304 is the standard, best balance.
Harsh Outdoor (within 500m of coast, industrial area, poolside): Must use SUS316. This is the value divide. Choosing SUS316 saves huge future maintenance costs.
Initial Cost: 201 < 304 < 316
Lifecycle Cost: You must consider:
Maintenance Cost: 201 in the wrong environment needs frequent polishing, rust protection, and replacement.
Image Loss: Rusty handrails damage project quality and your brand.
Service Life: 316's lifespan in harsh environments far exceeds 304 and 201.
The Rule of Thumb: “Extremely tight budget + dry environment = 201; Long-term peace of mind + value investment = 304; Harsh environment = non-negotiable, choose 316.”

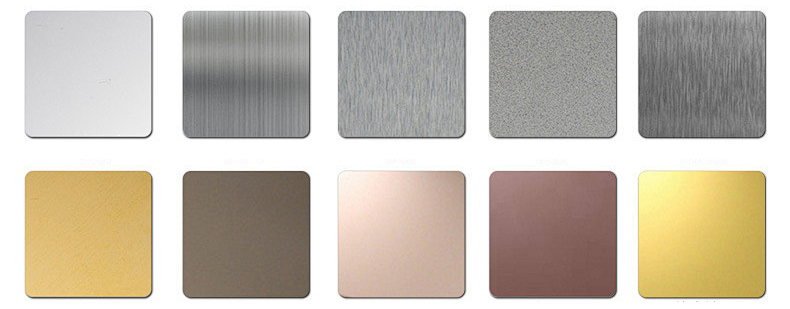

Different materials suit different finishes, affecting both looks and cost.
Brushed (HL), Bead-Blasted (No. 4): Most common. 304 and 316 achieve the best, fine, uniform texture. 201 brushed finish is prone to scratching and future rust.
Mirror (8K): Demands high-quality base material. 304 and 316 achieve a high-reflectivity mirror finish. 201 struggles to match this and loses luster easily.
Powder Coating (e.g., PVDF): For color (black, gold, bronze), 201 base material can be coated to save cost, but coating integrity is critical. 304/316 coating provides a double layer of protection.
Welding: 304 and 316 weld beautifully with strong, aesthetic seams. 201 welds are less corrosion-resistant and need extra care.
Bending: All three can be bent, but 304 and 316 have better toughness, reducing cracking risk.
Component Compatibility: Ensure all components (posts, bases, connectors, screws) match the handrail tube material! Mixing 304 tube with 201 fittings causes galvanic corrosion, accelerating rust.
High-end real estate, municipal projects, and overseas jobs often mandate specific materials (e.g., requiring Mill Test Certificates), specifying 304 or 316, and frequently compliance with standards like ASTM A554. 201 typically cannot meet these requirements.
Wrong Choice: Using AISI304 for outdoor terraces and pool railings to control costs.
Risk: Salt-laden sea air accelerates corrosion on AISI304. Rust spots may appear in 1-2 years, leading to complaints, high maintenance costs, and a damaged hotel rating.
Right Choice: Use AISI316 for all outdoor rails and fittings, demanding ASTM A554 Grade 316 from the supplier.
Reasoning: The higher initial investment solves corrosion concerns for a decade, protecting the hotel's luxury positioning and offering the lowest lifecycle cost.
Wrong Choice: Using AISI316 throughout.
Problem: Severe over-engineering, creating unnecessary cost waste and eroding project profits.
Right Choice: Use AISI304 for indoor stair handrails. Use AISI304 or AISI316 for outdoor balcony railings based on project positioning and budget. Insist on ASTM A554 compliance for quality assurance.
Reasoning: AISI304 adequately handles the weather in most urban settings, offering the best value.
Scenario: Decorative guardrails in atriums and walkways, not frequently touched.
Choice: Use high-quality AISI201 tube and fittings, with a brushed or powder-coated finish.
Reasoning: The dry indoor environment has low corrosion demands. With strict quality control, AISI201 can be an economical choice.
"A chain is only as strong as its weakest link." The right tube is useless without compatible fittings and proper craftsmanship.

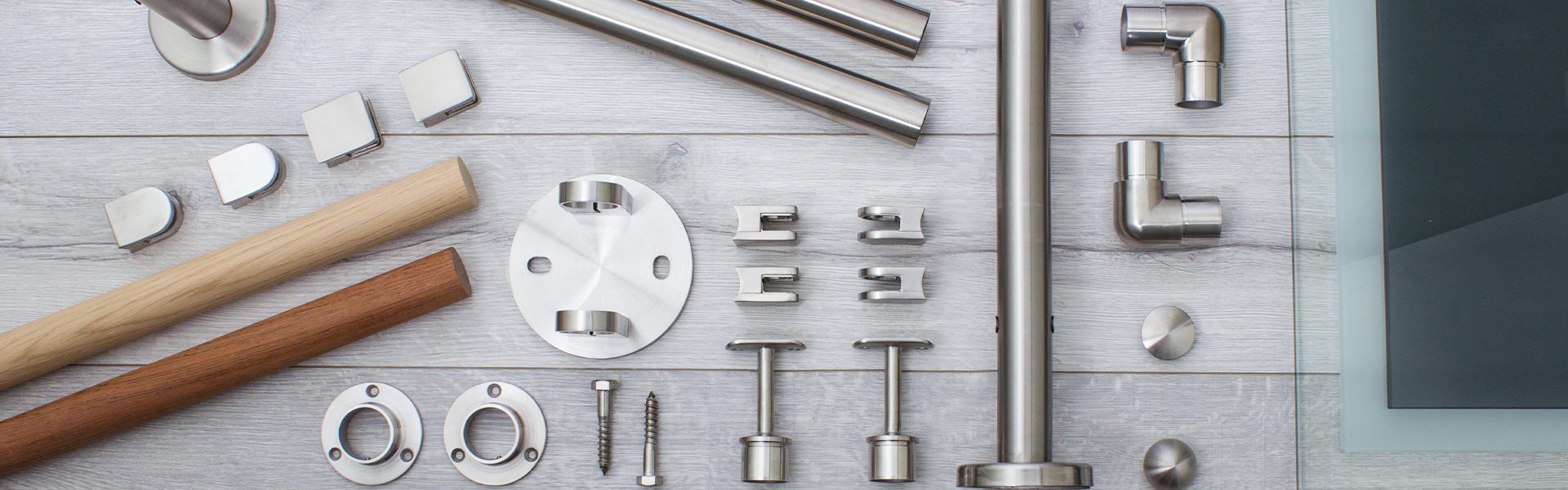

Material Consistency: Reiterated: All fittings (flanges, bases, connectors, screws) MUST match the handrail tube material to prevent galvanic corrosion.
Welding Craftsmanship: Professional TIG (GTAW) welding ensures full, even seams, followed by pickling & passivation to restore corrosion resistance at the weld zone. This is key to preventing "weld decay".
Surface Protection: During fabrication and installation, tubes must be protected with plastic film to prevent scratches and iron contamination (which causes rust).
Supplier Selection: A professional supplier like EGOEE provides not only full-range tubes and matching fittings but also:
Material Certification: We provide authoritative material test reports and declarations of conformity to standards like ASTM A554, ensuring peace of mind when purchasing.
Technical Consulting: Expert advice on selection and fabrication best practices.
Processing Services: Precision cutting, bending, and pre-welding to reduce on-site work and errors.
Selecting stainless steel handrails is a process of balancing environment, budget, aesthetics, and risk. It's not complex but requires a scientific approach.
Remember this workflow: Define Environment → Set Budget → Select Material → Match Fittings & Process → Consult an Expert Supplier.
If you have any questions after reading this guide, please feel free to contact EGOEE's technical consultants. We supply not only 201, 304, and 316 tubes and full fitting suites but also offer free selection consulting and solutions based on our years of industry experience, helping you build your next "timeless" landmark project.
Your one professional choice determines the project's appearance for a decade.
